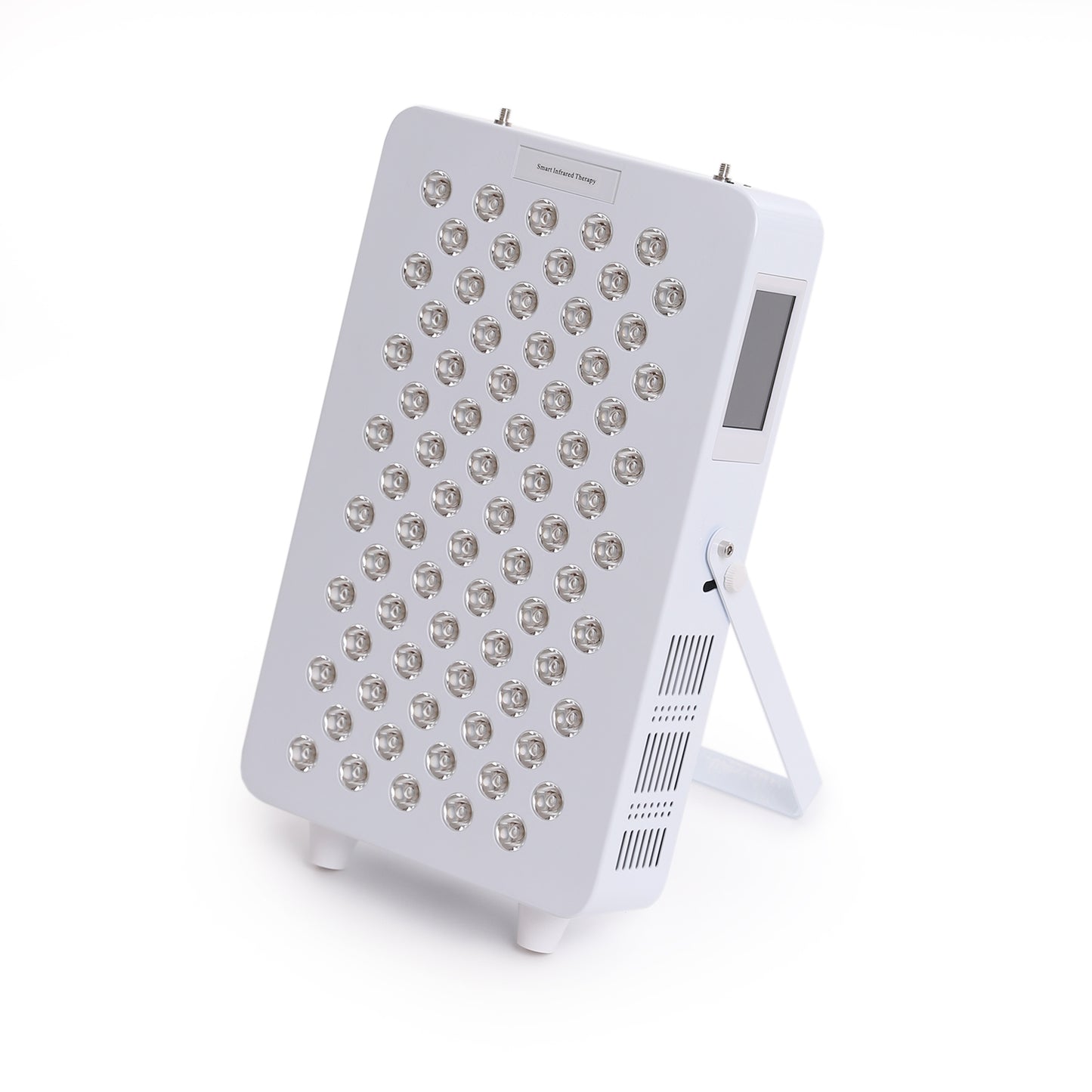

• Freestanding compact LED therapy panel with adjustable tilt stand.
  • Three different sizes of red and infrared LED light therapy panels displayed upright for comparison.

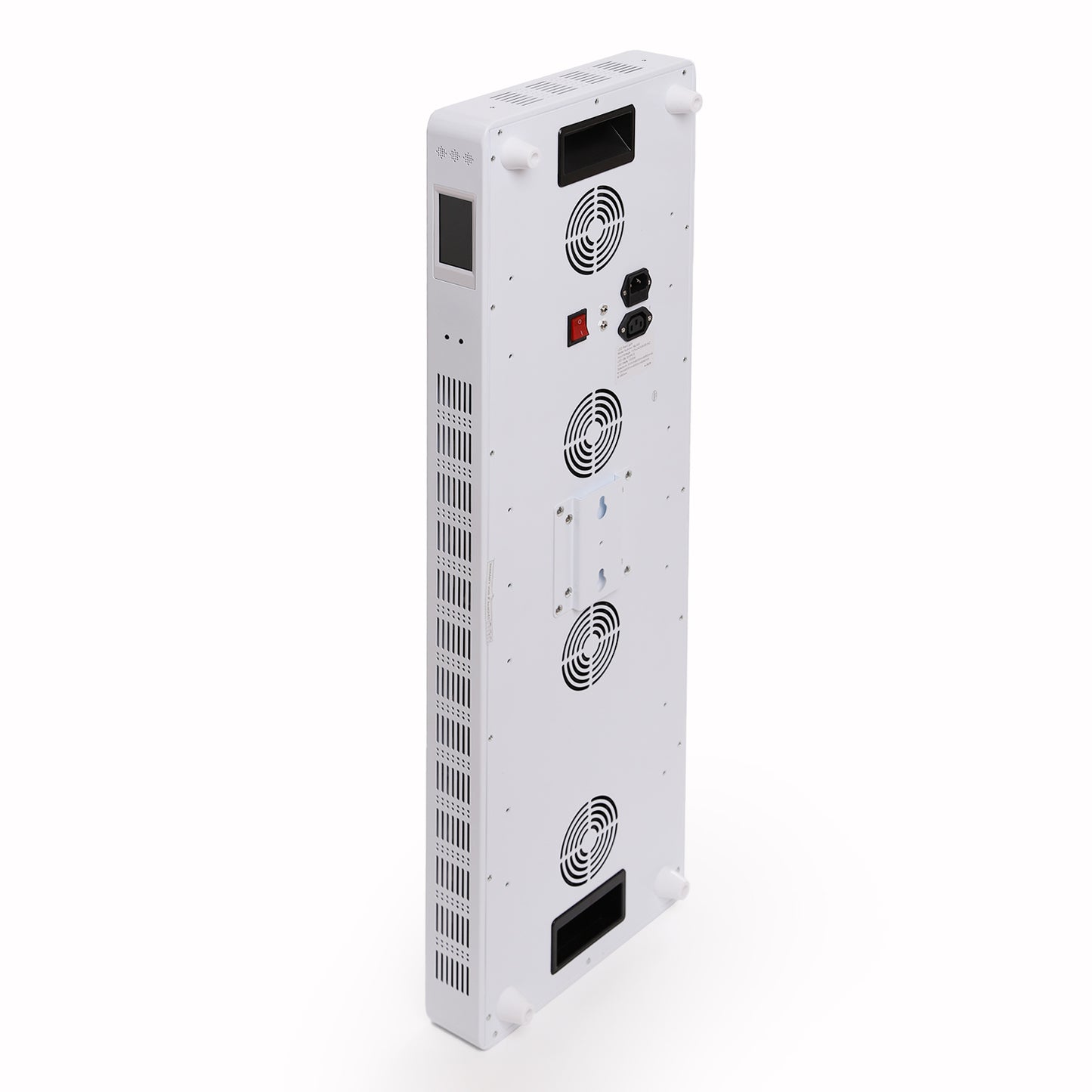

  • Rear view of red light panel with built-in fans and power connections.

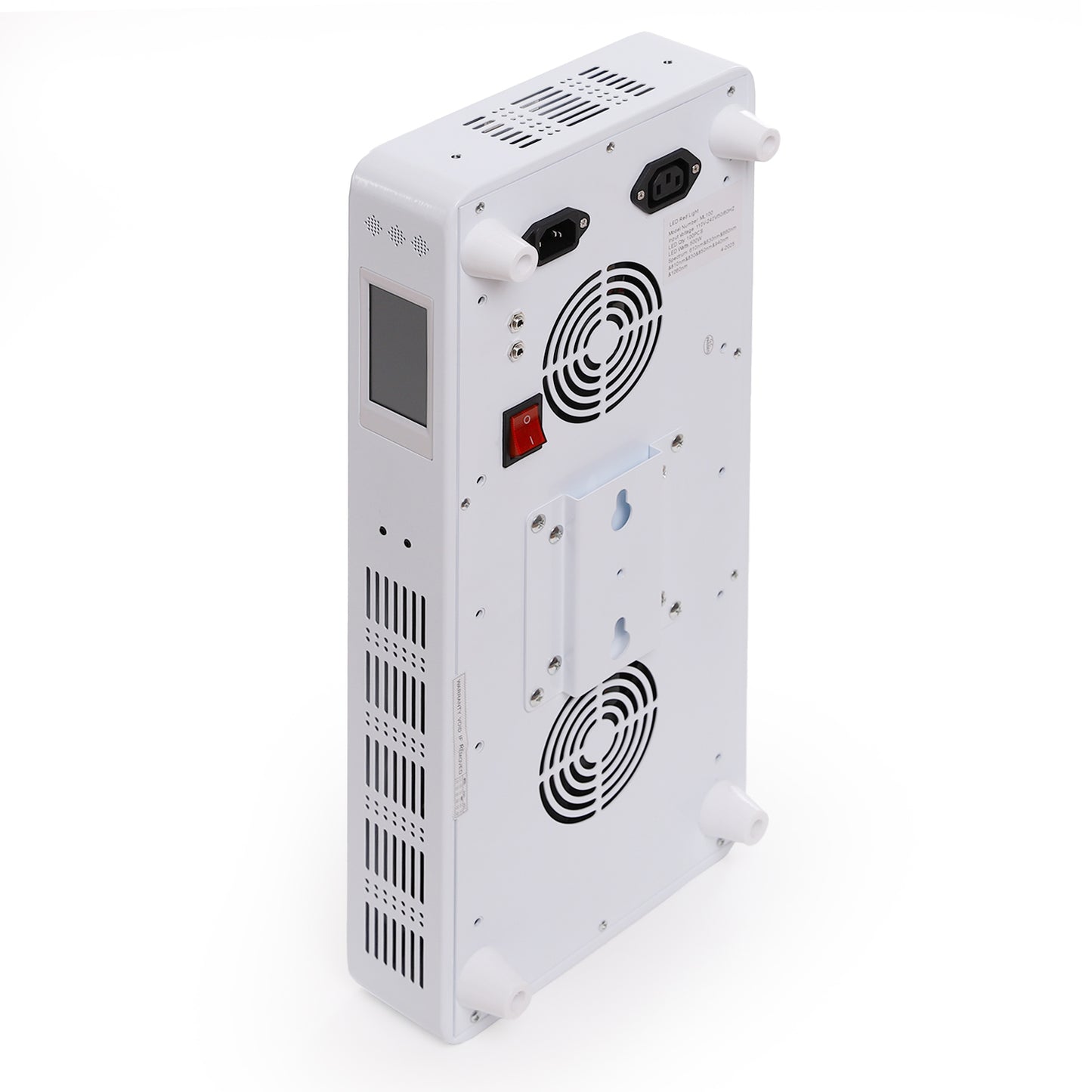

  • Back panel showing cooling fans, power ports, and wall-mount brackets.

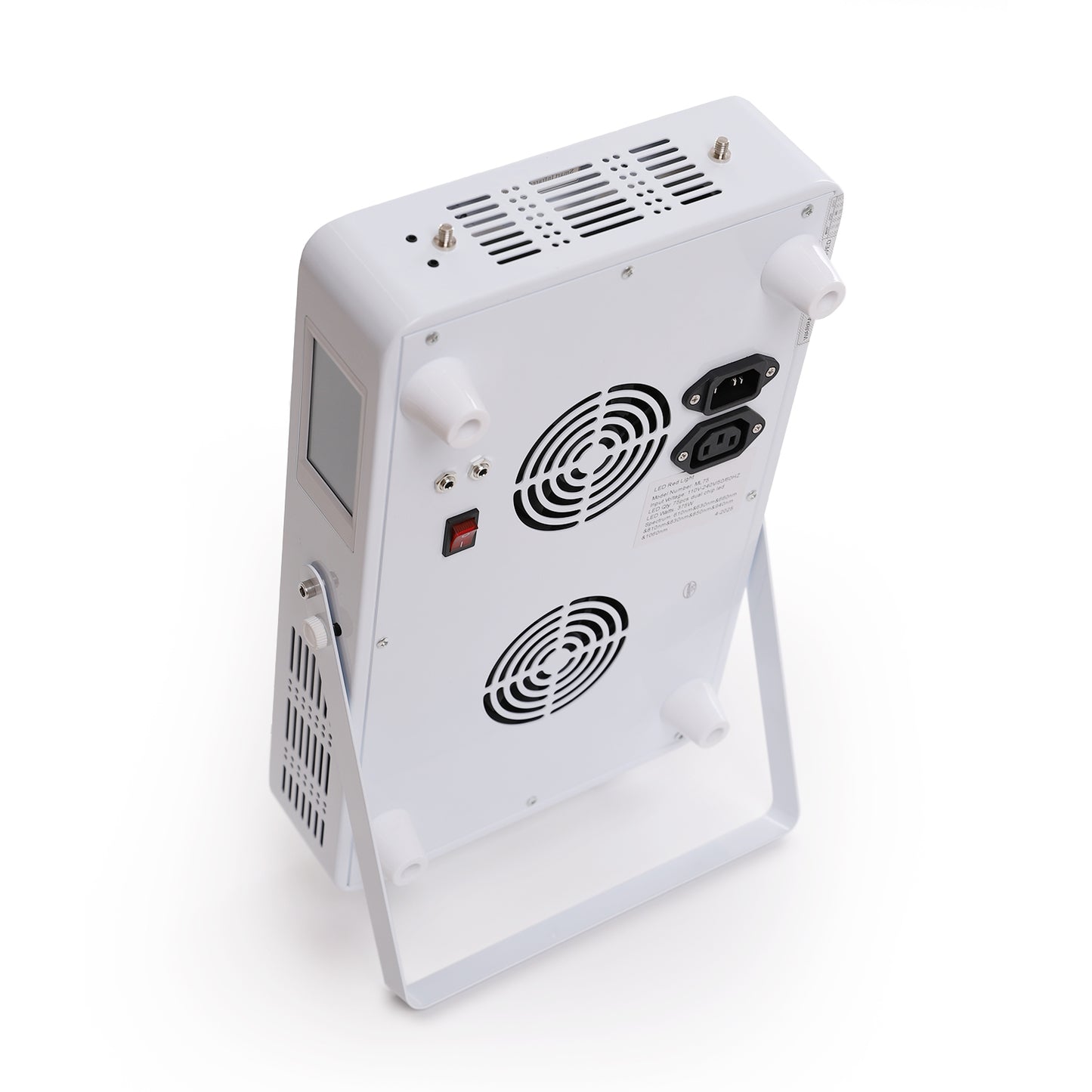

  • Rear view with cooling fans, power switch, and digital display screen.
  • Electrode pad set with assorted black and white pads, connector cables, and dual-pin wires for therapy devices.
  • Light therapy accessories kit with remote, power cord, eye goggles, hanging kit, wall mount, and carabiners.
  • Panel fully lit in dark room, emitting intense red and near-infrared LED light.
  • Therapy panel glowing red and infrared LEDs during active treatment mode.
  • Panel in use, red and near-infrared light beams active in dark background.
1 10

Smart Infrared Red Light Therapy Panel

Smart Infrared Red Light Therapy Panel

£249.00
£249.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Red Light Therapy Panel with EMS – Full-Spectrum Infrared Light for Skin, Pain & Recovery (ML75 / ML100 / ML300)

Unlock the healing power of light with our Red Light Therapy Panel with EMS, combining 8 clinically backed wavelengths (610nm–1060nm) with EMS muscle stimulation for next-level recovery, pain relief, and skin rejuvenation. Whether you’re treating your face, muscles, or full body, this panel delivers professional-grade results from home.

Choose from three panel sizes: ML75, ML100, or ML300, depending on your coverage and performance needs.

✅ Product Specifications

✅ Certification: FDA, CE, ROHS, FCC

✅ Panel Sizes:

• ML75 – 355×220×65mm (14×8.7×2.6”)

• ML100 – 480×220×65mm (19×8.7×2.6”)

• ML300 – 910×305×65mm (35.8×12×2.6”)



✅ LEDs:

• ML75 – 75 × 5W (Single & Dual Chip)

• ML100 – 100 × 5W

• ML300 – 300 × 5W



✅ Power Consumption:

• ML75 – 135W

• ML100 – 180W

• ML300 – 465W



✅ Beam Angles: 30° & 60°

✅ Flicker: 0 Flicker

✅ EMF: 0.04 µT @ 6 inches

✅ Sound Level: 35 dB

✅ Lifespan: 100,000 hours

✅ Warranty: 3 Years

✅ Plug Type: UK and EU Power Cables

✅ Controls: Touchscreen & Remote

✅ Functions: Light Therapy, Pulse Mode, EMS Massage

✅ Accessories Included:

• Power cord

• Hanging kit (hooks + ropes)

• Eye mask

• EMS pads and accessories



📊 Wavelength Distribution (Each Panel = 100%)

Each panel is internally balanced with its own dedicated LED distribution, totaling 100% per model.

Wavelength

ML75

ML100

ML300

610nm

4%

5%

3%

630nm

10%

9%

7%

660nm

36%

36%

40%

810nm

4%

4%

3%

830nm

9%

9%

5%

850nm

33%

33%

40%

940nm

3%

3%

1%

1060nm

1%

1%

1%



Each model is fully optimized for both surface and deep tissue therapy.

📈 Radiance Test Data (mW/cm²)

Measured using professional-grade irradiance testing equipment.

ML75 Panel

Distance

Irradiance

3 inches

402.26 mW/cm²

6 inches

380.91 mW/cm²

9 inches

226.77 mW/cm²

12 inches

187.79 mW/cm²



ML100 Panel

Distance

Irradiance

3 inches

264.06 mW/cm²

6 inches

132.4 mW/cm²

9 inches

107.63 mW/cm²

12 inches

103.02 mW/cm²



ML300 Panel

Distance

Irradiance

3 inches

242.18 mW/cm²

6 inches

145.84 mW/cm²

9 inches

115.72 mW/cm²

12 inches

103.47 mW/cm²



✅ Therapeutic Benefits

  • Reduces wrinkles, fine lines, and pigmentation
  • Promotes collagen and skin firmness
  • Alleviates joint pain, inflammation, and stiffness
  • Enhances muscle recovery and blood flow
  • Improves circulation and cellular regeneration
  • Supports wound healing and injury recovery
  • EMS massage improves muscle tone and activation
  • Helps with mood, sleep, and brain health
